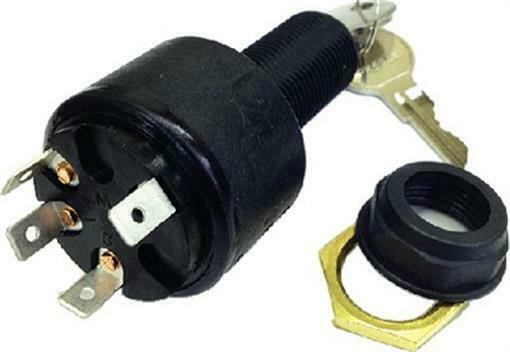

The POLYESTER IGNITION SWITCH-4 MP39800 by Sierra construction has ultimate corrosion protection that gets rid of oxidation. The housing of this switch eliminates potential shorts due to its non-conductivity. The POLYESTER IGNITION SWITCH-4 MP39800 inner barrier secures the contact plate to the cylinder lock. This switch installs in a standard 7/8" diameter hole with 3 Screw tab terminals. Size of 1 -1/8? maximum panel thickness length with four-blade terminal type and includes two keys. The industry-leading warranty for Sierra provides coverage for its ignition switches.
Key Features
-
Finest polyester ignition switches for marine application
-
Constructed from rust and corrosion-proof polyester housing
-
20 Amp rating
-
4 Position Conventional ignition switches, Positions: Acc - Off - Run - Start
-
Replaces 49-39800, 49-39801, MP3980, MP39800, MP39802, 808282367688, 11-MP39800, 2312139800, 23121398009
Specifications
-
BRAND: SEASTAR SOLUTIONS
-
SKU: MP39800
-
UPC:023121398009
-
Weight:0.28 LBS
-
Back-Up Nut: Brass
-
Face Nut: Hex black plastic face nut
-
RATED
-
Ignition: 15 Amp @ 12v DC
-
Solenoid:30 Amp @ 12v DC
-
Accessory: 15 Amp @ 12v DC
4 Position Conventional, Positions: Acc - Off - Run - Start, Terminal Type:4 Blade, Material: Marine grade glass-filled polyester
This product replaces:
- 49-39800, 49-39801, MP3980, MP39800, MP39802, 808282367688, 11-MP39800, 2312139800, 23121398009
