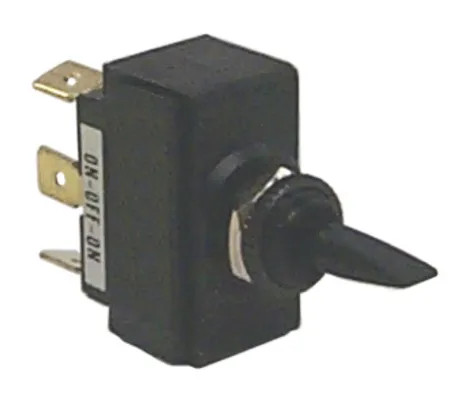

The Polyester Toggle Switch is an On/Off/On 3 terminal SPDT switch. It has a rate of 20 amps at 12 volts DC. It works to move it up and down those contacts, will then either turn on or off looks like this one has had some arcing going on inside, which might cause one of this oxidation and damage. The light will turn on when both switches are connected to either the red or the black traveler wire. It allows complete control of the light from either switch.
Key Features:
- Made from brass blade terminals and silver contracts.
- Heavy duty product with non-corrosive plastic construction.
Specifications:
- SKU: TG40040-1
- UPC: 808282195618
- Weight: 0.09 lbs
- Mounting Stem: 15/32" L x 15/32"
- Mounting Hole : 1/2"
- Switch Positions: On/Off/On
- Terminals: 3 Blade
- Type: SPDT Single Pole Double Throw
- Style: Standard Toggle
- This product replaces: TG40040, TG4004252, 808282195618,
- 11-TG40040-1
- Cross Reference / Specs: SEADOG 420108-1,
- COLE-HERSEE 54103-01
Standard Toggle, Positions: On-Off-On SPDT, Rating:25amps @12VDC, Non-corrosive plastic construction, brass blade terminals, silver contacts
This product replaces:
- TG40040, TG4004252, 808282195618, 11-TG40040-1
