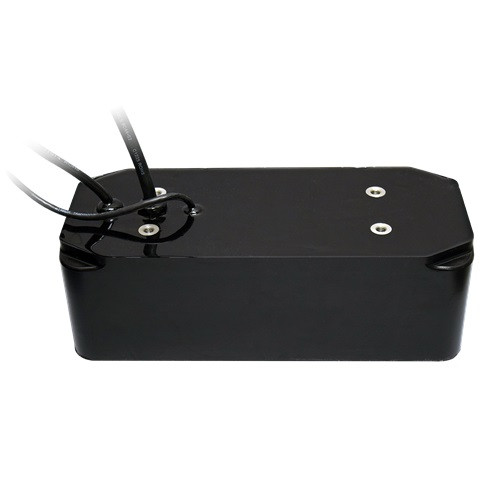

Furuno 165T-PM542LM High-Power Pocket Mount Combination Transducer
Model: 165T-PM542LM- DFF3D operating frequency 165 kHz
- Built-in motion sensor
- Built in temp sensor
- Low—CHIRPS from 30 kHz to 60 kHz, Beamwidth 19° to 10° (10° to 5° fore-aft)
- Medium—CHIRPS from 80 kHz to 130 kHz, Beamwidth 13° to 8°
- All of these elements are built into an Airmar PM542 Urethane housing
- 12M Cables. Two cables for Low & Medium CHIRP, 7 pin connector and a pigtail cable for the DFF3D
Pocket Mount Combo Transducer Low/Medium TruEcho CHIRP for FCV1900/FCV1900B (30-60 kHz and 80-130 kHz), DI-FFAMP, and DFF3D Multi-Beam Sonar (165 kHz) only
