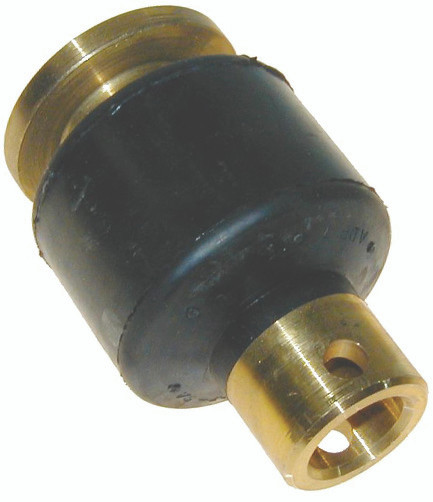

Bronze. HUB - PIN DRIVE (VS-24) is made of a high-quality material that is a vital component of your vessel?³ performance. The hub is the device to which a propeller is mounted. Bronze. HUB - PIN DRIVE (VS-24) is the cylinder-type component that supports the propeller. The propeller is supported by a cylinder-type component called a HUB - PIN DRIVE (VS-24). Its purpose is to act as a deterrent against propellers colliding. It is a stronghold that maintains the propeller in place without inflicting extra damage to your craft if it hits something hard.
Bronze. HUB - PIN DRIVE (VS-24) is the center round portion, sometimes called the barrel, or boss, of the propeller. It is the attachment point for the blades and some props. The hub includes the central hub which is typically splined to mate the prop to the propeller shaft.
Key Features:
- Proven to be an outstanding high-quality hub.
- It improves the performance and reliability of the vessel.
- Excellent performance quality, durability, and high reliability.
- Designed to provide maximum convenience and comfort.
- Applicable for Johnson/Evinrude 100 hp.
- It is for OMC Sterndrive Model 13, 14 Large Gearcase.
- The original hub had large tabs protruding toward Gearcase and a slotted bore; neither is necessary.
Specifications:
- Brand: HMS Hub
- SKU: VS-24
- Weight: 1.80 LBS
- DRIVE TYPE: Pin drive
- HUB TYPE: Rubber
- Spindle length: 4.280- inches (~4 1/4- inches)
- Flange Dia: 2.460- inches
- Rubber O.D: 2.800- inches
- Max. Inside Dia: 1.000"
- Uses Wear Ring: none
- Rubber Duro: 75
- Spline count: Pin Drive
- This product replaces: VS-24, VS24, 156
Engine Application
Johnson-Evinrude
Johnson-Evinrude 100 hp
Omc Cobra Sx / Omc Cobra Sterndrive
OMC Sterndrive Model 13, 14 large gearcase?y66-1968
This product replaces:
- VS-24, VS24, 156
