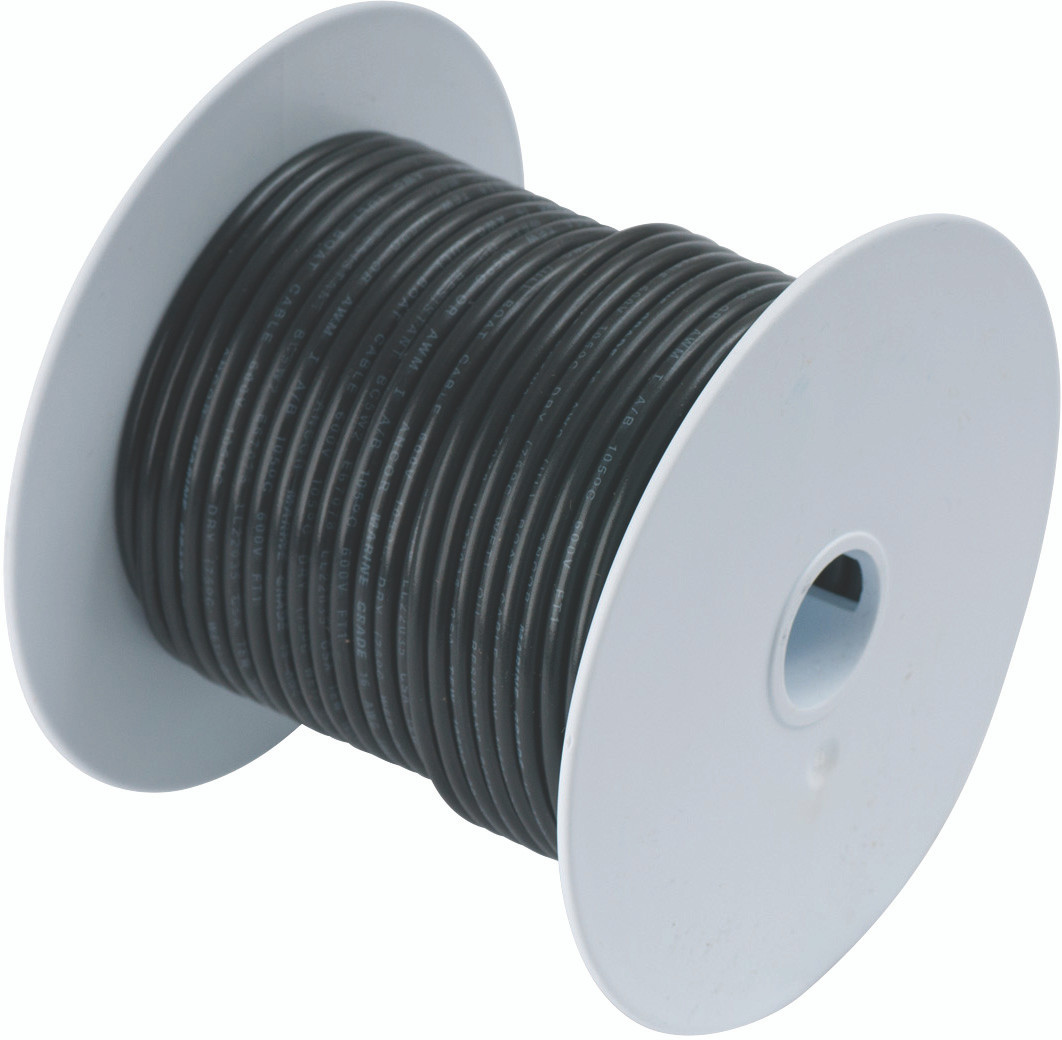

The 100-ft. BLACK #10 PRIMARY WIRE is a black 10-gauge Ancor Marine Grade manufactured from tinned copper stranding for ultimate protection against deterioration and electrolysis. This top-quality primary wire has Ultra flexible (Type 3) stranding that resists fatigue caused by vibration and flexing. The exclusive high-end vinyl insulation remains flexible even in extreme cold and is resistant to salt water, battery acid, oil, gasoline, and ultra-violet radioactivity. It also has unique insulation labeled at 600 volts, 105?? C dry, and 75?? C wet, and heat and resistance to abrasion.
Key Features:
- Made of tinned copper stranding for optimum corrosion resistance
- The ultra-flexible stranding is tension resistant.
- Even in frigid temperatures, proprietary premium vinyl insulating material remains flexible.
- The reinforcement rate is 600 volts.
- Tinned Boat Cable 10 AWG /5mm2, UL 1426
- This wire can withstand harsh conditions.
- UL 1426, US Coast Guard Charterboat (CFR Title 46), and ABYC requirements are all reached.
Specifications:
- SKU: 1-108010
- UPC: 091887108347
- Weight: 4.60 LBS
- Color: Black
- Length: 100?¼/li>
- Brand: Ancor
- Condition: New
MARINE GRADE? 10 AWG (5MM2) WIRE SPECIFICATIONS
| Nominal O.D. | 7/32" (5.6mm) |
| Wt./1000' | 44 lbs. (20 kg) |
| Stranding | 105 of 30 AWG |
| Cir. Mil Area | 10,500 |
| Square mm | 5.26 |
| Ohms/1000' | 0.98 |
This product replaces:
- 639-108010, 91887108347
