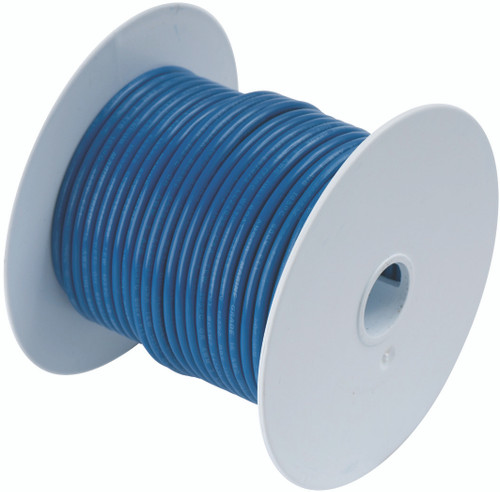

The 100-ft Dark BLUE #16 PRIMARY WIRE (1-102110) is a tinned copper wire with premium vinyl insulation rated at 600 volts, 105 degrees Celsius dry to 75 degrees Celsius wet.
It is very efficient that it stays flexible even in extreme cold (-40 degrees Fahrenheit/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion, and ultra-violet radiation. It also features the best quality ultra flexible (Type 3) tinned copper stranding for optimal corrosion and electrolysis resistance, fatigue resistance from vibration, and flexing. It meets the required UL 1426, ABYC, and US Coast Guard Charter boat (CFR Title 46) criteria.
Key Features:
- Remains flexible even in the intense cold (-40??C)
- A high-quality design ensures a longer lifespan.
- Crafted with care to meet your specific boating requirements
- Made from high-quality materials and engineered to exacting specifications
- Saltwater, battery acid, oil, gasoline, and ultra-violet radiation are all resistant.
- Copper stranding tinned for optimal corrosion and electrolysis resistance.
Specifications:
- SKU: 1-102110
- UPC: 09188710338
- Weight: 1.50 LBS
- Length: 100?Ö
- Color: Dark Blue
- Wire Gauge: 16 AWG
- Size: 1 mm??
- Material: Copper
- Brand: Ancor
- Condition: New
- This product replaces: 639-102110, 9188710338
MARINE GRADE?à16 AWG (1MM2) WIRE SPECIFICATIONS
| Nominal O.D. | 1/8" (3.2mm) |
| Wt./1000' | 16 lbs. (7.3 kg) |
| Stranding | 26 of 30 AWG |
| Cir. Mil Area | 2600 |
| Square mm | 1.31 |
| Ohms/1000' | 4 |
This product replaces:
- 639-102110, 9188710338
