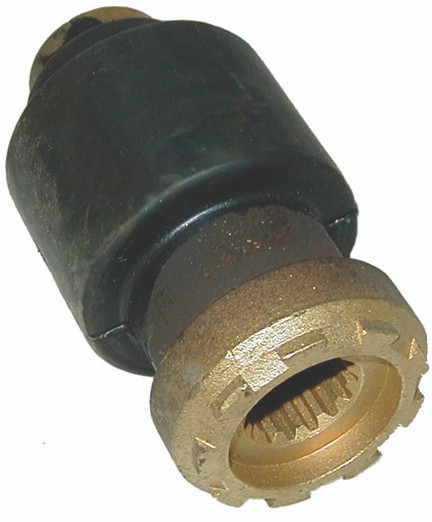

Hms Hubs, Inc (C) 15 Spline - Brz. Ss 80 Duro Vs-12

The 15 SPLINE - Bronze Stainless Steel 80 DURO (VS-12) is composed of the highest quality material and is an important part of the performance of your boat. The hub is the part of the propeller that is attached to it.

The 15 SPLINE - Bronze Stainless Steel 80 DURO (VS-12 is the cylinder-type component that supports the propeller. The propeller is supported by a cylinder-type component to prevent propellers from colliding.

The 15 SPLINE - Bronze Stainless Steel 80 DURO (VS-12) is a stronghold you can rely on. It helps maintain the propeller in place without inflicting extra damage to your vessel (if it hits something hard while on the drive). The barrel or boss refers to the middle spherical component of the propeller. The hub, which also comprises the center hub is generally splined to link the prop to the propeller shaft. It is where the blades and propellers are attached. The exhaust from many propellers passes right through the hub.

Key Features:

• It is outstanding and high in quality results.
• It helps lessens shock on the gearcase parts when the drive is moved from neutral to forward or reverse gear.
• It also safeguards the drive train from damage if the propeller strikes a hard surface or a solid object in the sea.
• It gives you better performance and reliability of the vessel.

Specifications:

• Brand: HMS Hubs
• SKU: VS-12
• UPC: VS-12
• Weight: 2.40 LBS
• Spindle length: 4.610" (~4 5/8")
• Flange Dia: 2.228- inches
• Rubber O.D: 2.560- inches
• Maximum inside Dia: 1.062-inches
• Uses Wear Ring: VSR-99
• Rubber Duro: 80
• Spline count: 15 Spline
• This product replaces: 65257, 727, 43672, VS-12, VS12, 257, 91850

Engine Application

Force

Honda

Mercury

Mercruiser

This product replaces:

65257, 727, 43672, VS-12, VS12, 257, 91850
